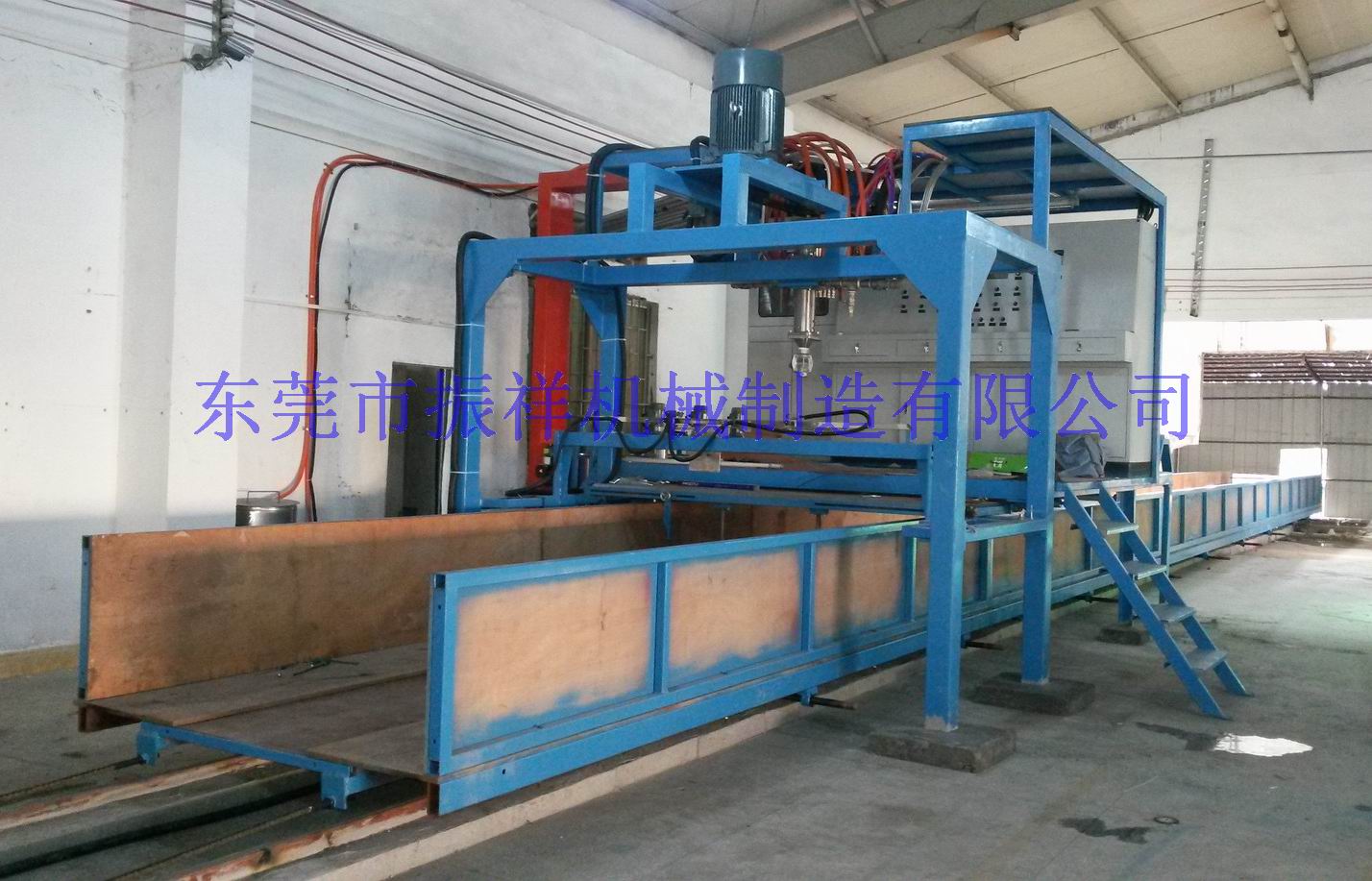

This machine is mostly used for producing of hard/soft urethane foam rubber productions(density is about 10~130 Kg/m3)，its automatization level is high, the production is low cost and the operation is simple. It is desirable equipment to manufacture production of foam rubber in furniture、circumference、shoes、electron、clothing、aviation、automobile industry and building insulation materials etc.
Mould length
20m
Mould height
0.6m
Foaming width
2050mm
Foaming density
10-130Kg/m3
Total power
100Kw
Mould speed
18m
Mixing head power
45Kw
Total output
50~250Kg/min
Machine external size
L45000xW2800xH1600mm
